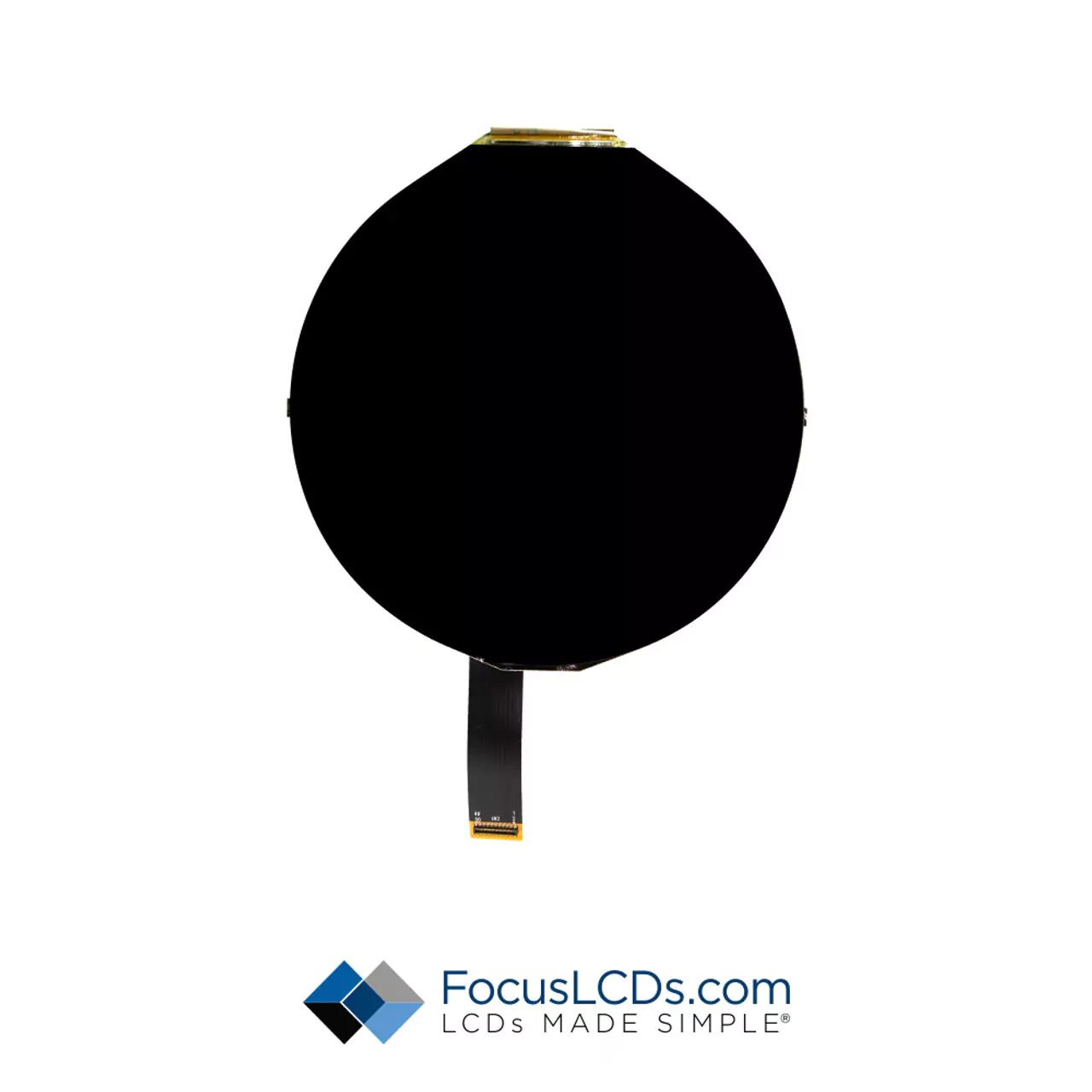

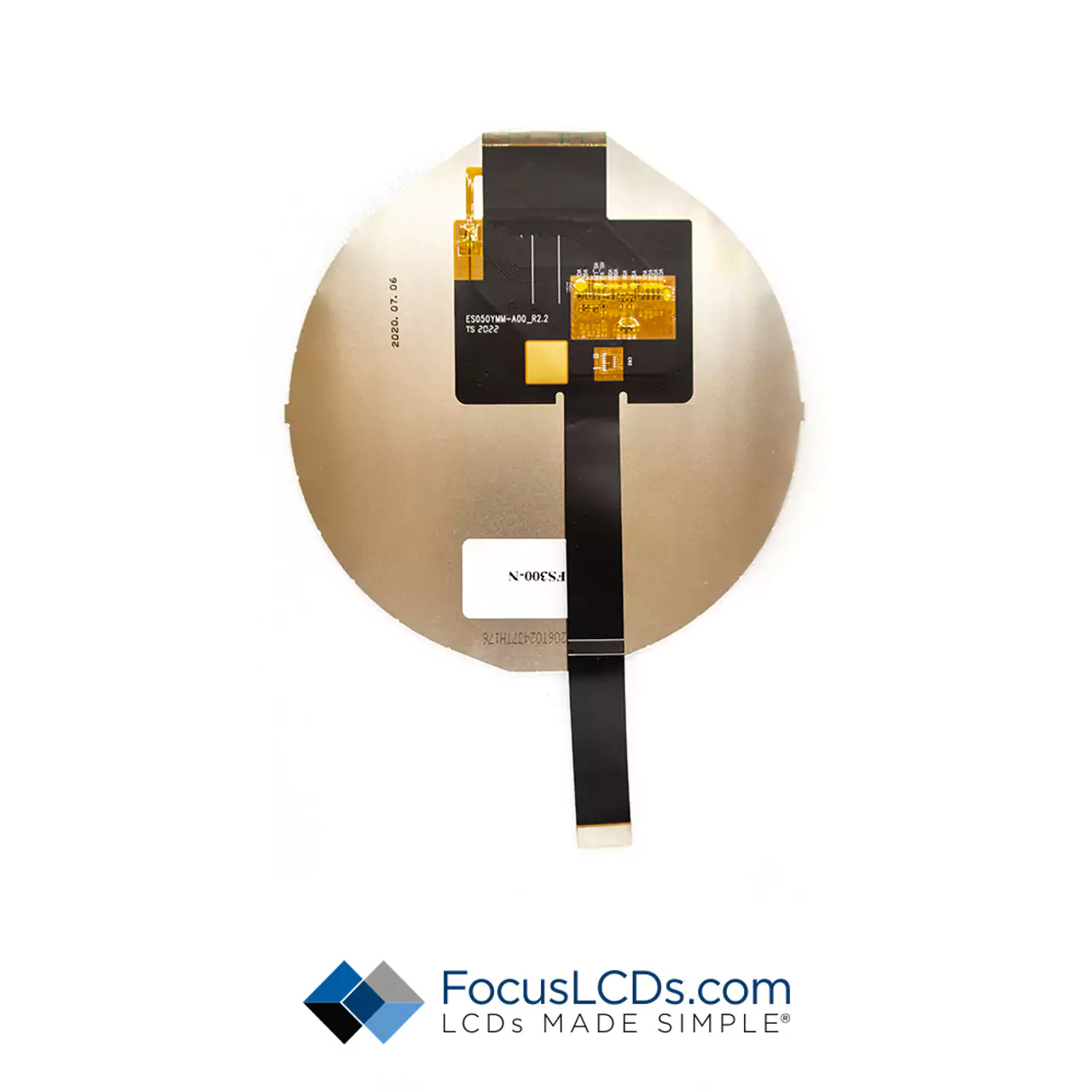

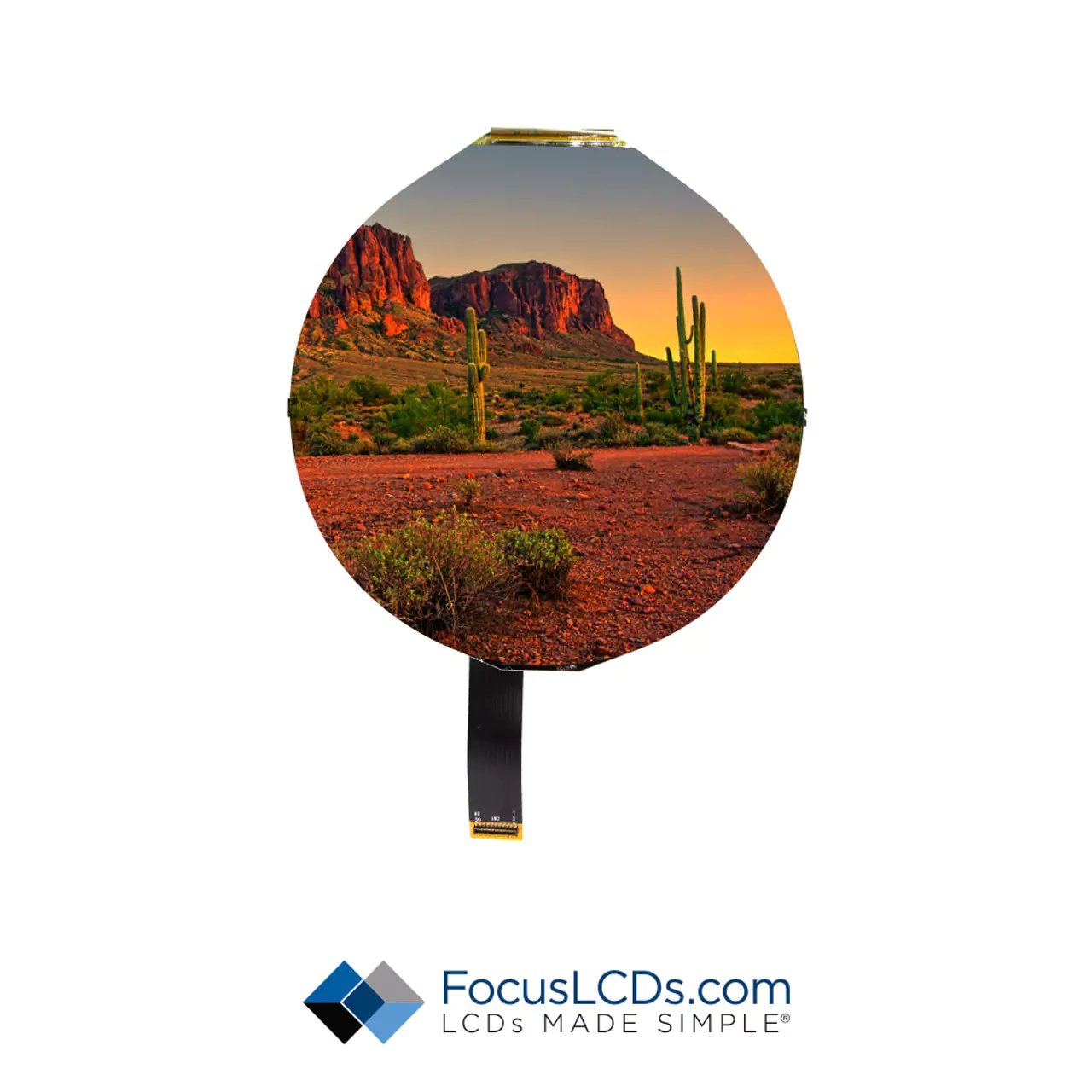

E50RC-FS300-N

$157.18

Out of stock

SKU: E50RC-FS300-N
AttributeValue
Diagonal Size5 Inches
Module Size132.2 x 136.53mm
Viewing Area127.00 x 127.00mm
Resolution1080 x 1080
Interface4-Lane MIPI DSI
Brightness300 Nits
Touch Panel TypeNo Touch Panel
TFT ControllerHX8399-C
CTP ControllerNone
Display TypeTN
PolarizerTransmissive
Operating Temperature-20C to 60C

Documentation

5.0-inch TFT Display

Specification SheetsSchematicsCodeQuality Documentation
E50RC-FS300-N Specification Sheet4 Lane-MIPI Schematic4 Lane-MIPI CodeRoHS
E50RC-FS300-N DWGREACH
 CMRT

Description

TN TFT: Our TN types of TFTs offer rapid response times making them ideal for fast-paced applications. With a cost-effective production process, the TN type of display is suitable for any application requiring a dynamic and responsive color display.

MIPI-DSI Interface: Our MIPI-DSI Interface TFT LCDs deliver high-resolution visuals and rapid data transfer for a superior display experience. These advanced displays are perfect for cutting-edge applications such as smartphones, tablets, and other high-performance devices, where stunning graphics and ultra-fast refresh rates are essential.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.
