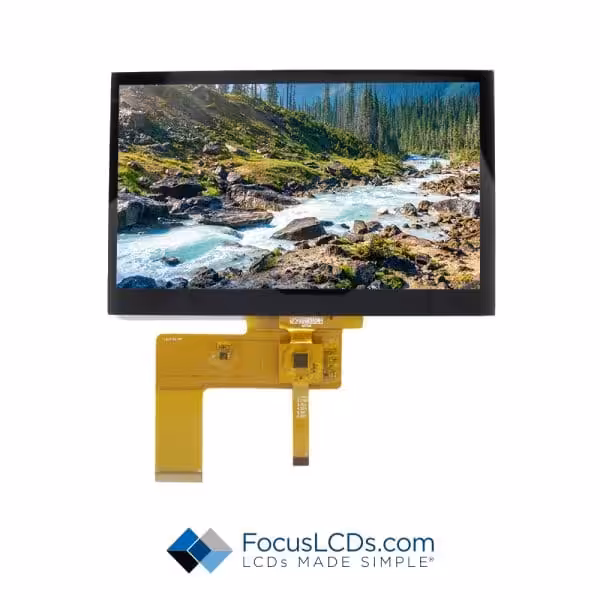

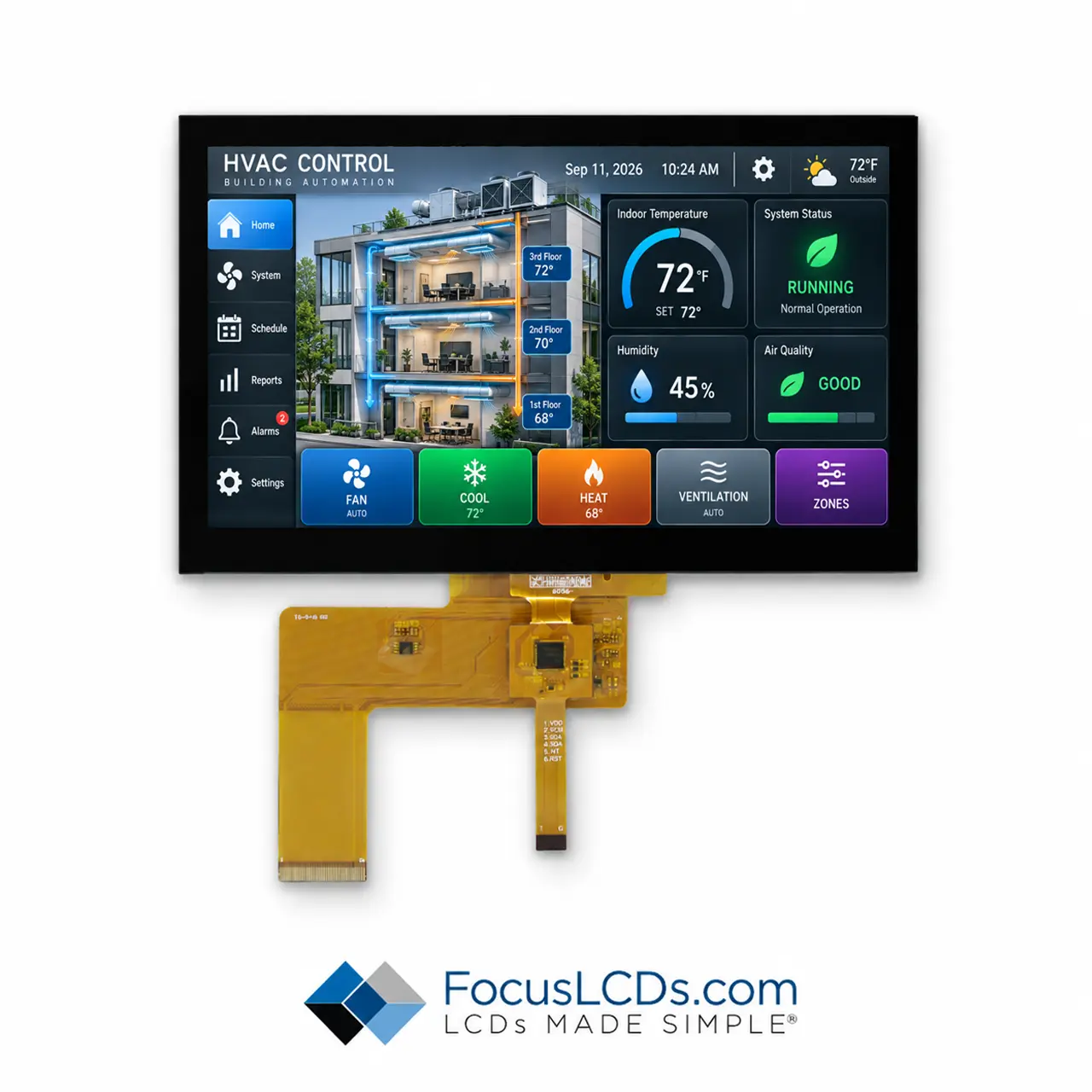

E70GE1-RW820-C

$78.00

15 in stock

SKU: E70GE1-RW820-C
AttributeValue
Diagonal Size7 Inches
Module Size165.00 x 104.00mm
Viewing Area154.21 x 85.92mm
Resolution800 x 480
Interface16/18/24-Bit RGB
Brightness820 Nits
Touch Panel TypeCapacitive
TFT ControllerEK73002, EK9716
CTP ControllerFT5426
Display TypeIPS
PolarizerTransmissive
Operating Temperature-20C to 70C

Documentation

7.0-inch TFT Display

Specification SheetsQuality Documentation
E70GE1-RW820-C Specification SheetRoHS
E70GE1-RW820-C DWGREACH
EK9716 Specification SheetCMRT
EK73002 Specification Sheet
FT5426 Specification Sheet

Description

IPS TFT: Our In-Plane Switching (IPS) TFT LCDs offer outstanding color accuracy, wide viewing angles, and minimal color shift. These displays are perfect for applications where color fidelity and image consistency are crucial, such as professional graphics work, photography, and high-end entertainment systems.

RGB Interface: Our TFT LCDs with RGB Interface ensure seamless connectivity and high-speed data transfer for vivid, true-to-life colors and exceptional image quality. These displays are perfect for multimedia systems, gaming consoles, and other applications where color depth and fidelity are of utmost importance.

WVGA Resolution: Our WVGA (Wide Video Graphics Array) TFT LCDs feature a resolution of 800x480 pixels, providing an immersive widescreen experience for your devices. These displays are ideal for applications that require high-quality visuals and an expansive aspect ratio, such as digital signage, automotive displays, and multimedia systems.

Sunlight Readable: Our Sunlight Readable TFT LCDs, with brightness levels ranging from 700 to 1000 nits, are designed to deliver clear, vivid visuals even under direct sunlight. With advanced brightness technology, these displays offer superior visibility and color accuracy, enhancing usability in outdoor environments or high ambient light conditions. Ideal for outdoor kiosks, digital signage, and other sunlight-exposed applications.

Capacitive Touch Panel: Our Capacitive Touch Panel TFT LCDs provide a smooth and accurate touch experience, making them perfect for consumer electronics, such as smartphones, tablets, and interactive kiosks. These panels support multi-touch functionality and offer excellent durability and scratch resistance for a superior user experience.

Transmissive Polarizer: Our Transmissive Polarizer TFT LCDs offer exceptional color reproduction and high-contrast ratios for crisp, clear visuals. These displays are ideal for indoor applications, such as multimedia systems and gaming devices, where bright and vibrant images make all the difference.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Development Accessories

Breakout Boards


KBB5040A

TFT Breakout Board

Connectors


FH12A-40S-0.5SH(55)

TFT Connector


FH12-6S-1SH(55)

CTP Connector
